<%@ Page Language="C#" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
SeriesCollection getRandomData()
{
SeriesCollection SC = new SeriesCollection();
Random myR = new Random();
for(int a = 1; a < 5; a++)
{
Series s = new Series();
s.Name = "Series " + a;
for(int b = 1; b < 5; b++)
{
Element e = new Element();
e.Name = "Element " + b;
e.YDateTimeStart = new DateTime(2023,4,4).AddDays(myR.Next(50));
e.YDateTime = e.YDateTimeStart.AddDays(myR.Next(50));
e.Complete = myR.Next(50);
s.Elements.Add(e);
}
SC.Add(s);
}
return SC;
}
void Page_Load(Object sender,EventArgs e)
{
// Set the title.
//Chart.Title="My Chart";
// Set the chart Type
Chart.Type = ChartType.ComboHorizontal;
// Turn 3D on.
Chart.Use3D = true;
// Set a default transparency
Chart.DefaultSeries.DefaultElement.Transparency = 20;
// Set the x axis label
Chart.XAxis.Label.Text="X Axis Label";
// Set the y axis label
Chart.YAxis.Label.Text="Y Axis Label";
// Set the x axis scale to time.
Chart.XAxis.Scale = Scale.Time;
// Set the directory where the images will be stored.
Chart.TempDirectory="temp";
// Set the chart size.
Chart.Width = 600;
Chart.Height = 350;
// Set elements to show values.
Chart.DefaultSeries.DefaultElement.ShowValue = true;
// Set the element label template to show the range in days.
Chart.DefaultSeries.DefaultElement.LabelTemplate = "%Days Days";
// Add the random data.
Chart.SeriesCollection.Add(getRandomData());
}
</script>

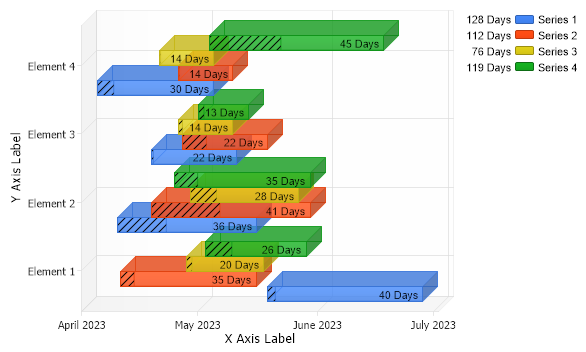

<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample (Time Gantt Chart in 3D)</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Function getRandomData() As SeriesCollection
Dim SC As SeriesCollection = New SeriesCollection()
Dim myR As Random = New Random()
For a As Integer = 1 To 4
Dim s As Series = New Series()
s.Name = "Series " & a
For b As Integer = 1 To 4
Dim e As Element = New Element()
e.Name = "Element " & b
e.YDateTimeStart = New DateTime(2023,4,4).AddDays(myR.Next(50))
e.YDateTime = e.YDateTimeStart.AddDays(myR.Next(50))
e.Complete = myR.Next(50)
s.Elements.Add(e)
Next b
SC.Add(s)
Next a
Return SC
End Function
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Set the title.
'Chart.Title="My Chart";
' Set the chart Type
Chart.Type = ChartType.ComboHorizontal
' Turn 3D on.
Chart.Use3D = True
' Set a default transparency
Chart.DefaultSeries.DefaultElement.Transparency = 20
' Set the x axis label
Chart.XAxis.Label.Text="X Axis Label"
' Set the y axis label
Chart.YAxis.Label.Text="Y Axis Label"
' Set the x axis scale to time.
Chart.XAxis.Scale = Scale.Time
' Set the directory where the images will be stored.
Chart.TempDirectory="temp"
' Set the chart size.
Chart.Width = 600
Chart.Height = 350
' Set elements to show values.
Chart.DefaultSeries.DefaultElement.ShowValue = True
' Set the element label template to show the range in days.
Chart.DefaultSeries.DefaultElement.LabelTemplate = "%Days Days"
' Add the random data.
Chart.SeriesCollection.Add(getRandomData())
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample (Time Gantt Chart in 3D)</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
- Sample FilenameGallery/b09.aspx
- VersionLegacy (Pre 3.0)
- Uses DatabaseNo
